InvisibleSight® IS MKV

Announcement

New Batch In Stock!

• New shipment has arrived Mon (6/15), all FDE config available, plus 1 Green Vis / LA-23 / Black unit in stock.

• Don’t see your desired unit? Reserve your unit or email your preferred configuration and quantity. Black housing configurations available by request.

• We now offer no-rush Economy Shipping (USPS Ground Advantage / UPS Ground Saver). Delivery times may vary based on destination.

______________________________________________________

What’s Included

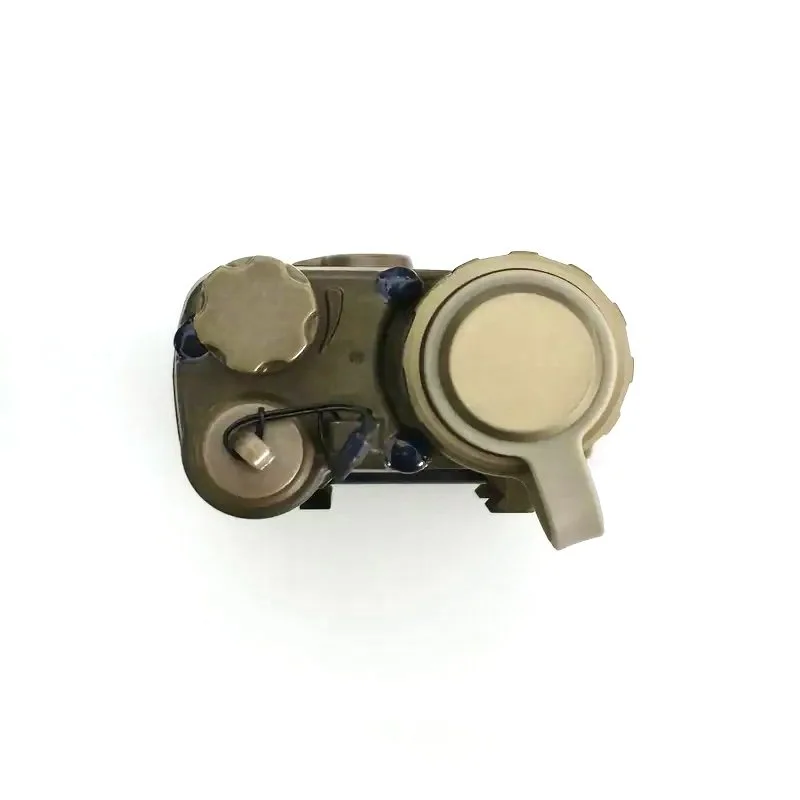

• InvisibleSight IS-NGAL MKV unit

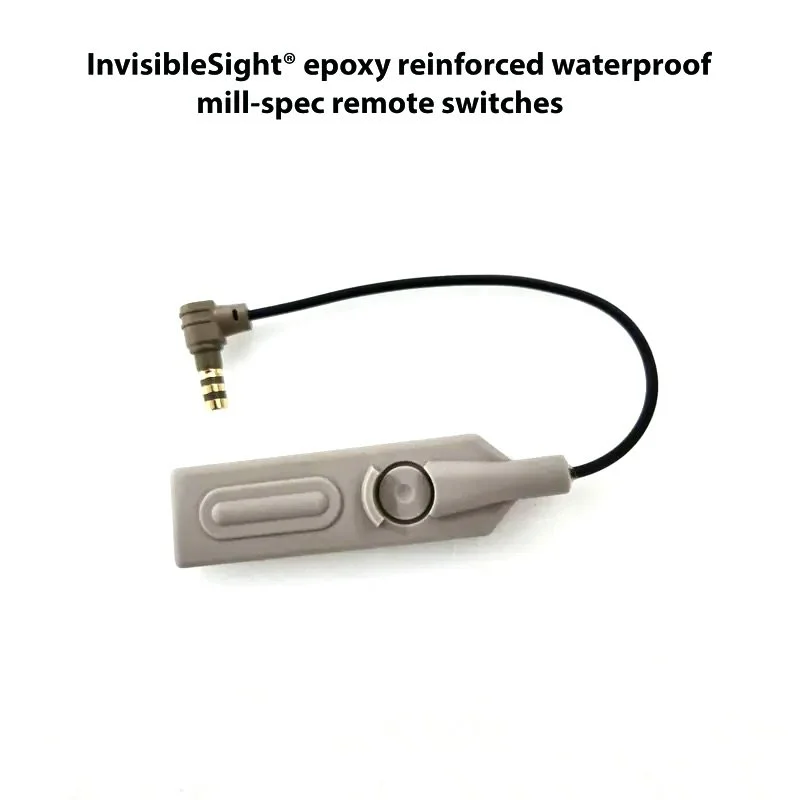

• One remote pressure switch (based on selected configuration):  

  - LA-23 remote switch with VIS override function (for LA-23 plug versions)  

  - ModButton-style remote switch (for Crane plug versions)

• Soft storage pouch

• Signed warranty certificate

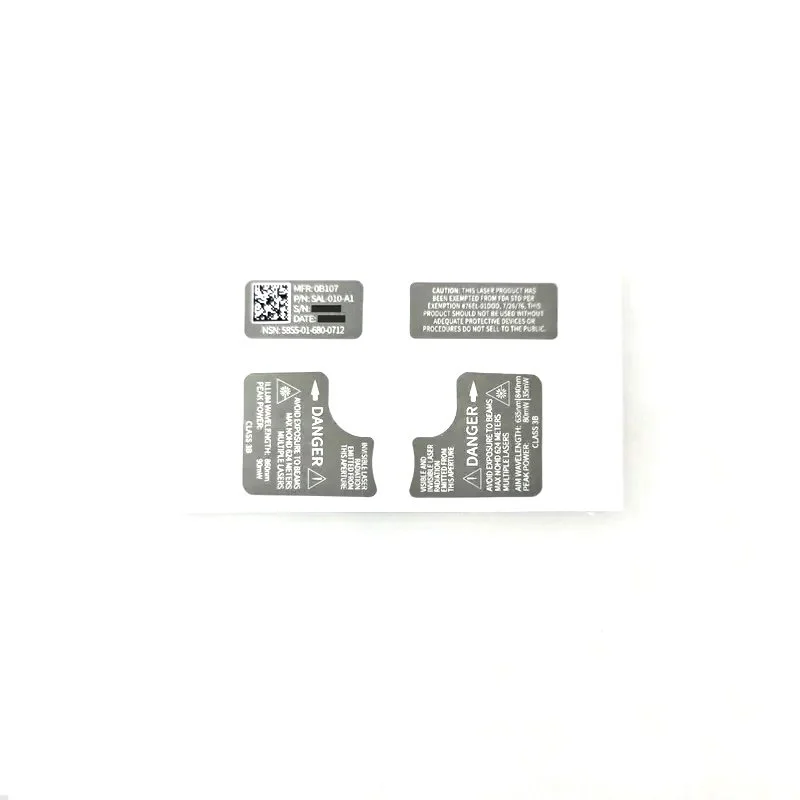

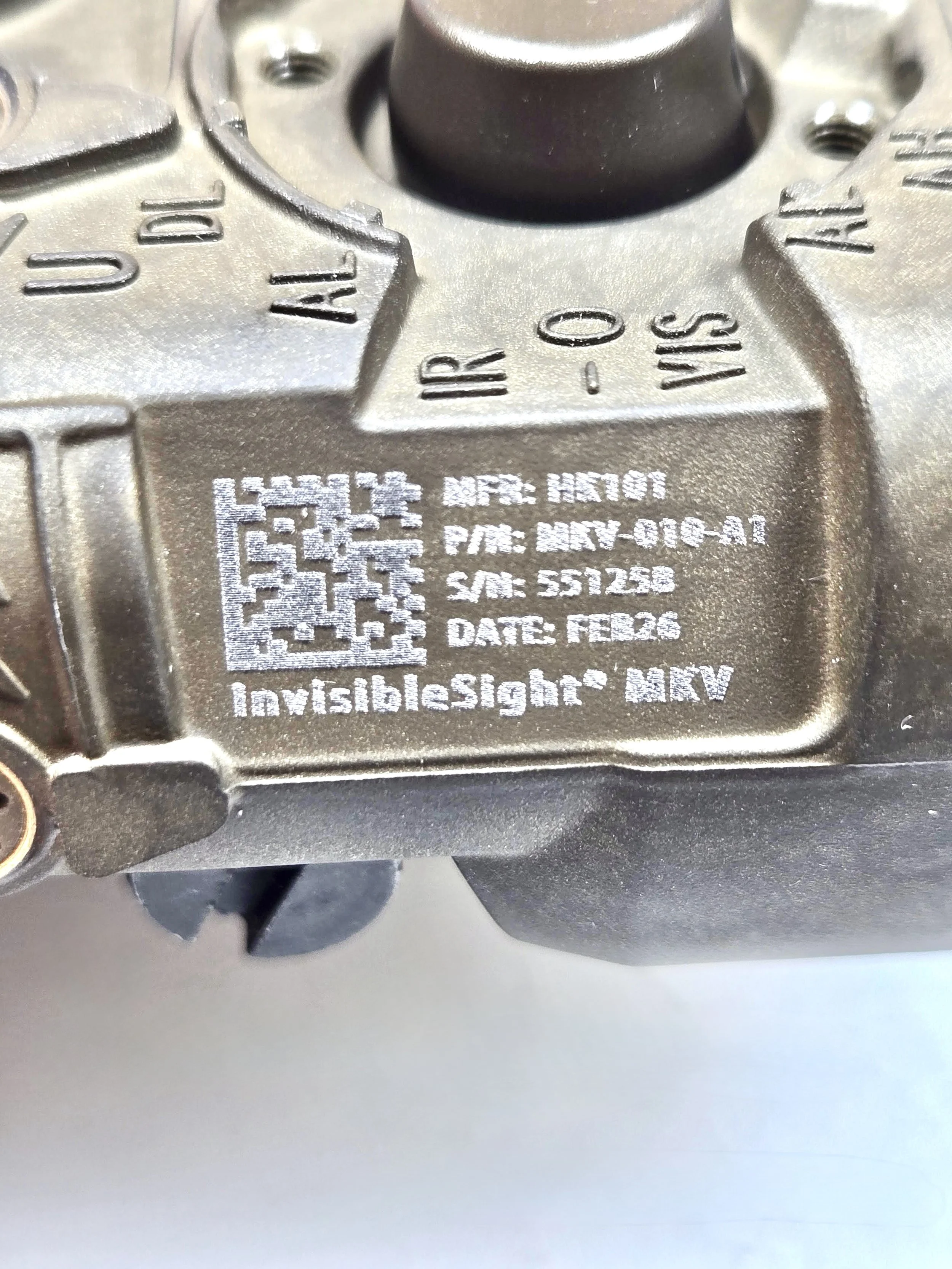

• Factory markings (ID and safety labels)

FEATURES

• Forged 6061 aluminum housing

• Upgraded hard-anodized surface finish

• Waterproof construction rated to 10 m (33 ft) submersion (exceeds IP68 standards)

• Internally epoxy-reinforced electronics

• Positive, audible windage and elevation adjustments with zero play between clicks

• U.S.-made, mil-spec VCSEL laser modules

• Adjustable IR illuminator divergence with no point-of-aim shift during adjustment

• Precision co-aligned VIS and IR laser emitters

• Functional IR illuminator diffuser cap and laser ND filter cap included

• Guaranteed to hold zero up to 7.62×51 mm NATO recoil

• Compatible with ATPIAL (Crane) and LA-23 remote switches

• One standard single remote switch included

• Visible laser override functionality with LA-23 switch option

• Limited 2-year warranty, with signed certificate

• Manufactured by InvisibleSight®

Specifications

IR Aiming Laser

• Wavelength: 850 nm

• Output power (High): 40 mW

• Output power (Low): 0.6 mW

• Beam divergence: 0.5 mrad

Visible Aiming Laser

• Wavelength: 630 nm (Red) / 520 nm (Green)

• Output power (High): 80 mW (Red) / 20 mW (Green)

• Output power (Low): 4.5 mW

• Beam divergence: 0.5 mrad

IR Illuminator

• Emitter type: VCSEL IR laser

• Wavelength: 850 nm

• Output power (High): 80 mW

• Output power (Low): 10 mW

• Adjustable divergence: 15–150 mrad

Mechanical & Environmental

• Adjustment resolution: 0.5 MOA per click

• Recoil rating: Up to 7.62×51 mm NATO

• Mounting interface: MIL-STD-1913 Picatinny rail

• Mounting torque: 30 in-lb

• Waterproof rating: Submersible to 10m

Physical

• Dimensions: 90 × 50 × 35 mm (3.54 × 1.97 × 1.38 in)

• Weight: 140 g (4.94 oz)

• Finish options: Black or FDE

Power

• Battery type: 1 x 3V CR123A (not included)

Output power values are manufacturer specifications. Use of laser aiming devices is subject to applicable federal, state, and local regulations.
